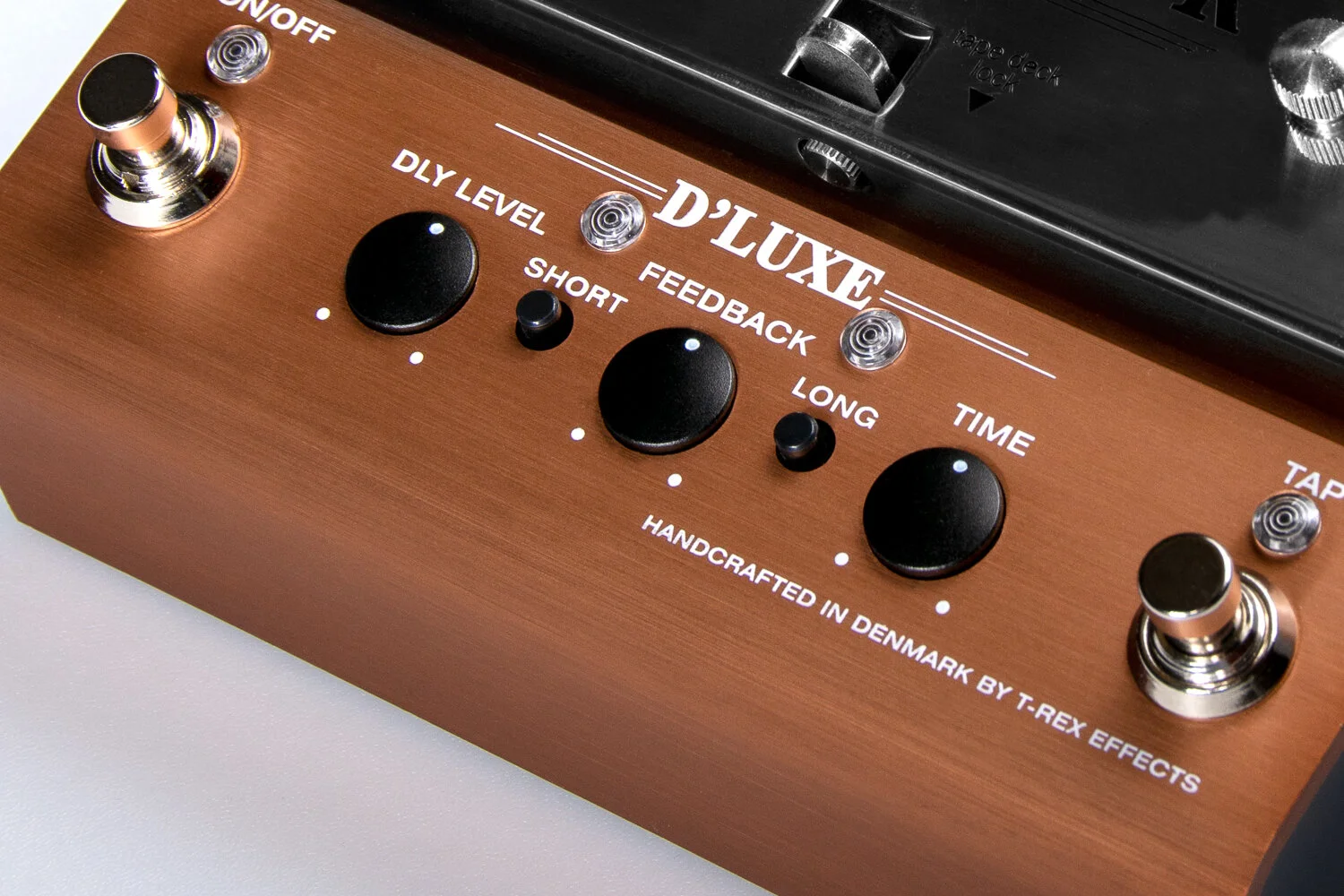

REPLICATOR D’LUXE TAPE ECHO
The Replicator D’Luxe is a sum up from all the knowledge, we have built up over the years, making Tape delays.
It is a 2 head machine. The drive mechanism has been updated with a noiseless belt drive. A tape lock/release mechanism is added, to make the pinch wheel and tape last longer and electronics has been tuned to perfection.
HANDCRAFTED IN DENMARK
Multiple Playback-heads for true analog tape echoes
One Record head and two playback heads. Short Head for slap back delay. Long head for longer modern delays, or combine both heads for a semi Delay-Room experience
Delay time Short head =108 – 520mS. Delay time long head = 215 – 1000 mS
Tap tempo for Long Head and half the time for the short head
True Bypass switching with a gold plated relay
New motor suspension with belt drive, for reduced noise operation
New Tape deck lock-mechanics to protect pinch roller and tape for longer life span
All analog signal path from input to output
Power supply with exchangeable blades 90-240 Volt, and an extra tape cartridge included
Tech specs
| Input impedance @ 1KHz |
> 500K Ohm |
|---|---|
| Output impedance @ 1KHz |
< 1K Ohm |
| Power supply (included) | 12VDC, center negative |
| Current draw @ 12VDC |
300mA |
| Maximum input signal Vp-p | 8,7V p-p (12dBu) |
| External connectors | input, output, DC inlet |
| Controls | delay time, feedback, delay level,
saturation, kill dry, short, long, on/off, tap tempo |
| Pedal size incl. knobs (W x H x D) |
80 x 174 x 175 mm 3,15 x 6,85 x 6,89 in |
| Weight excl. packaging | 1,50 kg / 52,91 oz |
